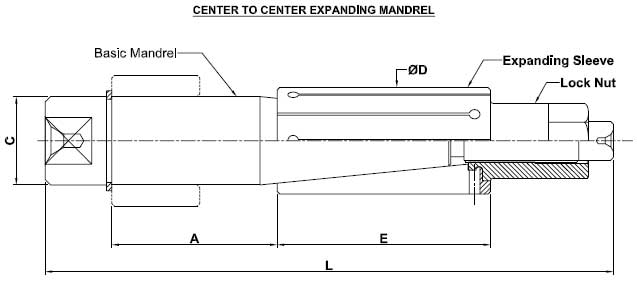

| Model |
Range D |
L |
E |
C |
A |
| ACS00 |
14.70-18.70 |
95 |
35 |
15 |
38 |
| ACS01 |
19.70-23.70 |
95 |
40 |
20 |
33 |
| ACS02 |
24.70-28.70 |
125 |
46 |
26 |
46 |
| ACS03 |
29.70-33.70 |
125 |
50 |
28 |
42 |
| ACS04 |
34.70-38.70 |
160 |
60 |
32 |
57 |
| ACS05 |
39.70-43.70 |
160 |
60 |
37 |
57 |
| ACS06 |
44.70-52.70 |
200 |
80 |
42 |
72 |
| ACS07 |
54.70-62.70 |
200 |
90 |
52 |
62 |
| ACS08 |
64.70-80.70 |
270 |
100 |
62 |
119 |
| ACS09 |
81.70-99.70 |
270 |
122 |
75 |
98 |
| ACS10 |
100.70-118.70 |
300 |
140 |
90 |
107 |
|
Appltcation:
Concentricity and true running inspection, turning, toothcutting, grinding holding between centres.
Special Features:
Hand operated clamping, cylindrical clamping, Possibility of mounting a logitudinal stop fixed to workpiece wide chucking range.
Concentricity 0.010mm |
